Custom Snatch Block Pulley Design
Project Overview

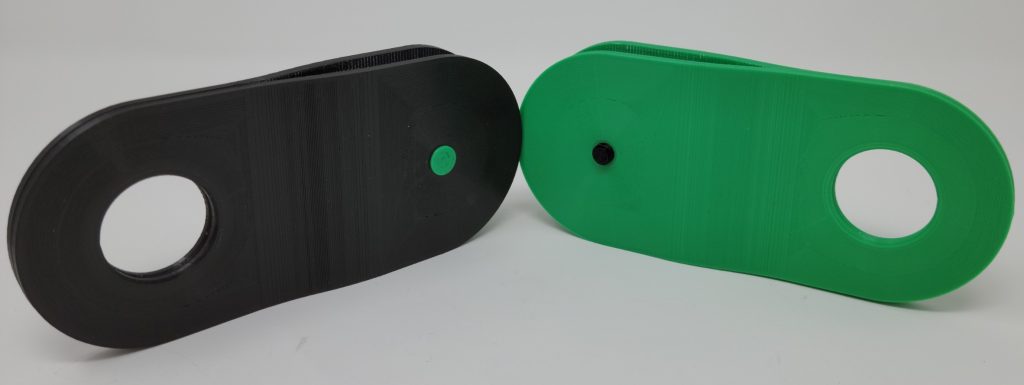

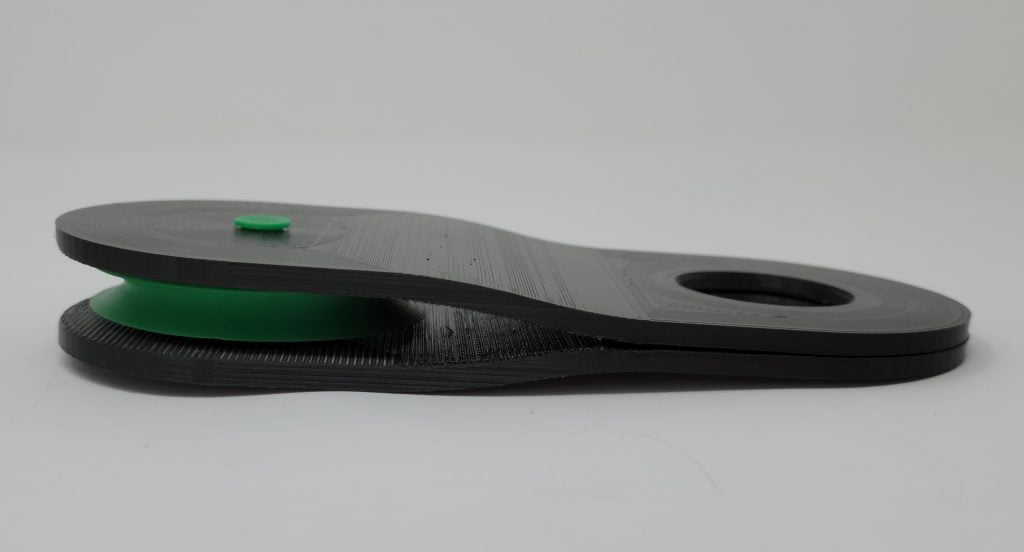

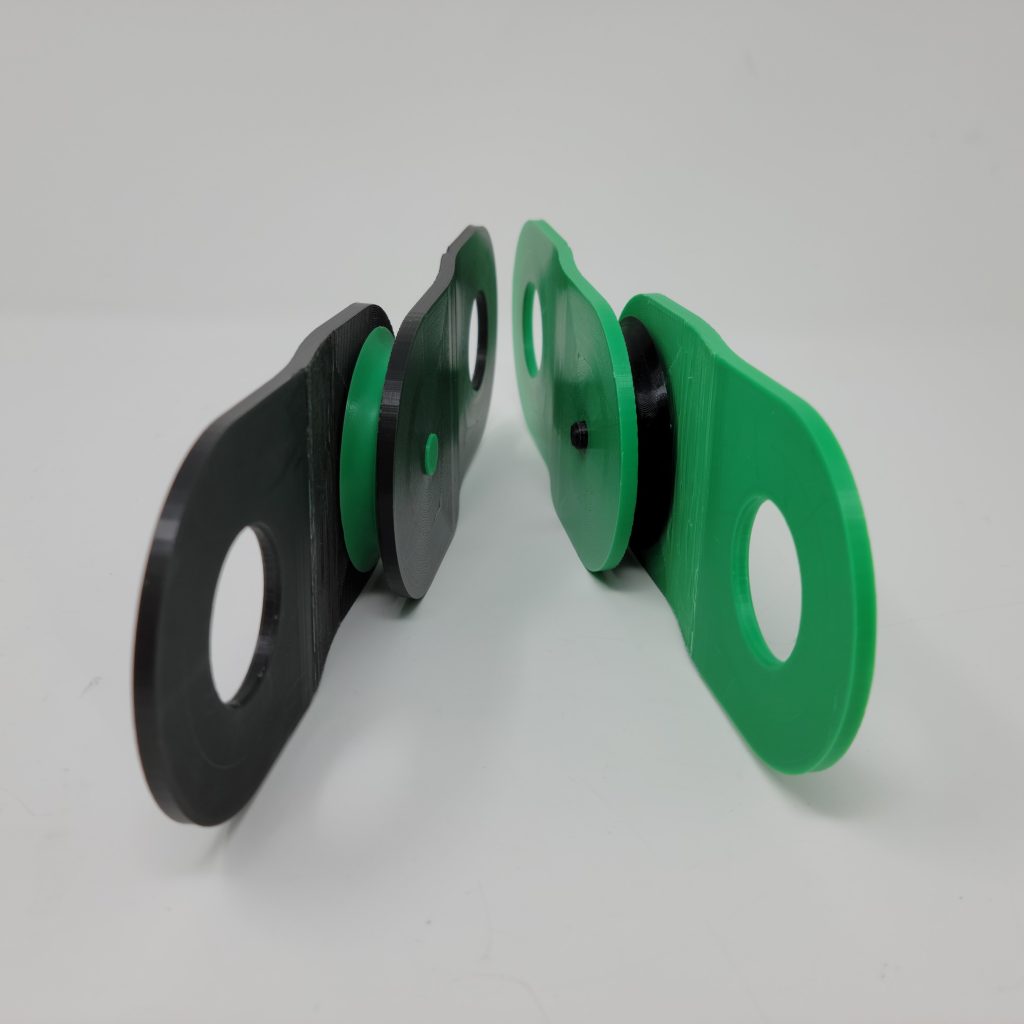

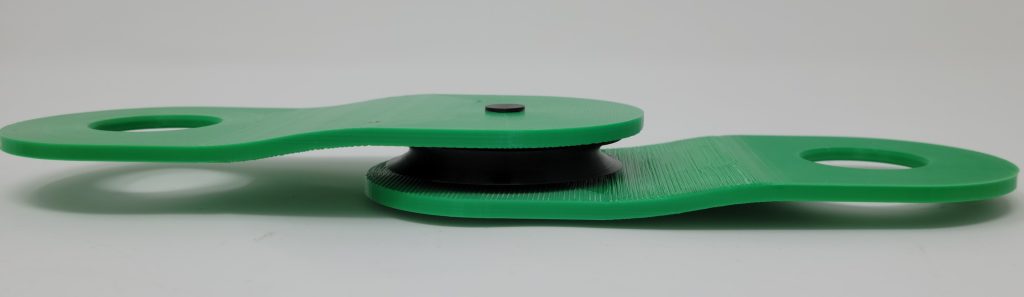

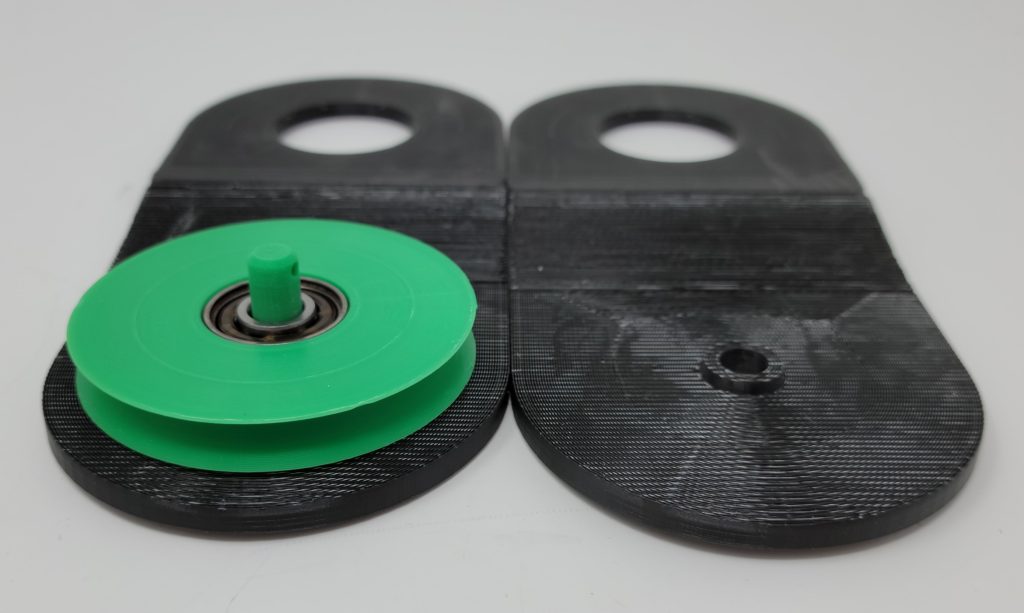

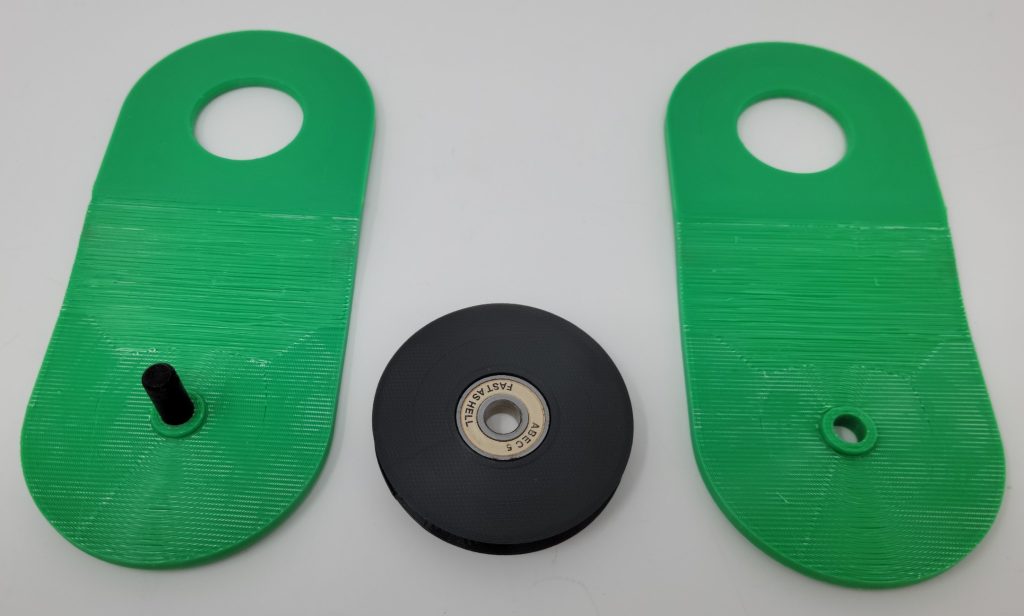

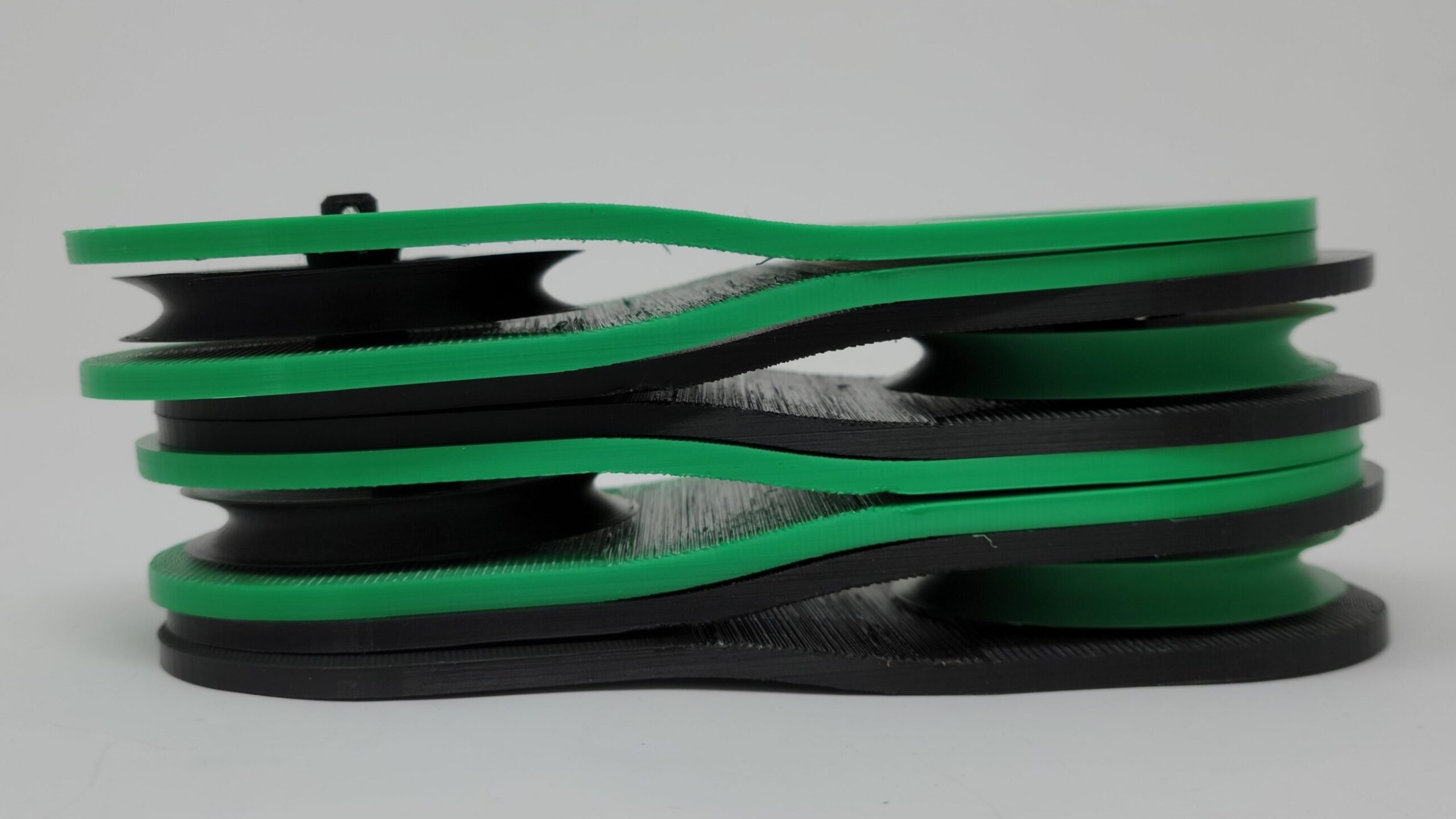

This project features my custom-designed snatch block pulley, engineered to support loads up to 50lbs. The design emphasizes ease of assembly and operational efficiency, with parts that press-fit together to streamline the construction process. An essential component of this design is an 8x22x7 ball bearing, which is seamlessly integrated into the inner pulley to enhance performance and durability.
Design Features and Benefits
- Load Capacity: Designed to handle up to 50lbs, making it ideal for small-scale rigging and hoisting tasks.
- Ease of Assembly: Press-fit components eliminate the need for additional hardware, facilitating a quick and simple assembly process.
- Compatibility: Accommodates most sizes of paracord and small rope, offering versatility in application.
- Smooth Operation: Incorporates a ball bearing in the inner pulley to ensure smooth movement, reducing wear on both the rope and the pulley components.
Project Significance
By focusing on a design that is both easy to assemble and effective in operation, this snatch block pulley represents a practical solution for a variety of rigging and hoisting needs. The project highlights my ability to innovate and improve upon traditional designs, providing a durable and user-friendly product. This custom pulley showcases my skills in mechanical design and problem-solving, contributing a valuable tool to those requiring reliable small-scale lifting solutions.
Specs
Dimensions
70.00mm x 160.00mm
Weight
129.55g
Case Material
PLA
